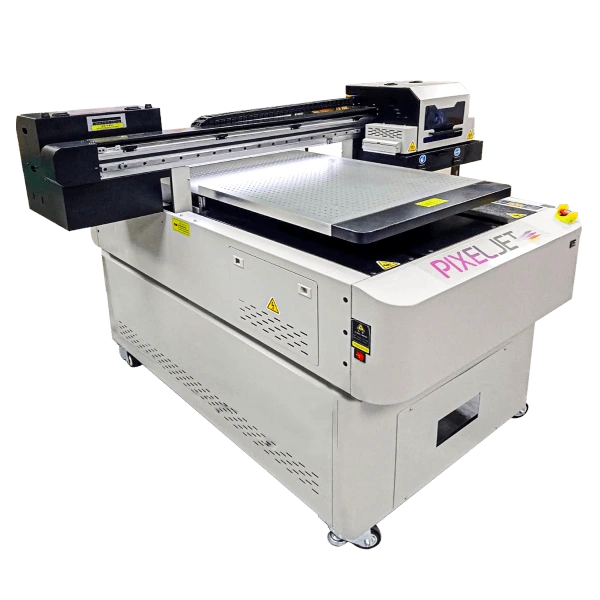

Pixeljet® GENIX 6090
Entry-level UV flatbed printer with Rotary Attachment
Small Investment Big Opportunity
Equipped with a powerful EPSON i3200 inkjet print head, Pixeljet Genix 6090 is a perfect solution for product customization and for small UV printing business enterprises. with its compact 600mm x 900mm flatbed printer, known for its exceptional robustness and engineering precision. Its smaller footprint compared to other models in the range makes it an ideal choice for print companies with limited workspace.
Features:
Water – Cooled high energy UV curing: Convex spotlight makes stronger light to cure ink, and an efficient water-recycling system ensures it works longer time.
White Ink Stirring Function: The white ink automatic stirring and precipitation prevention system can prevent the white ink from precipitating and effectively prevent the white ink from precipitating and blocking the nozzle.
Low power design: The design of low power consumption saves more processing costs for customers, and also achieves the purpose of energy saving and emission reduction.
Ink temperature control system: An automatic heating system can make the ink in the best situation at a constant temperature, obtaining the best print quality.
Liquid level alarm system: Automatically detects ink level status and reminds to replenish the ink in time, convenient and user-friendly design.
External motion system control: The external motion control can be used to prepare the printing work in advance, which is easy to operate and saves work time.
Benefits:
- Ideal for corporate gifting, POP/POS, mobile covers, photo albums, Bottles, Cylindrical objects,
and many more.. - Greener and cleaner printing with UV technology
- Low maintenance cost
- Faster production times
- Easy customization
- Wide range of applications
- User-Friendly Operation System
RESOURCES
| Technical Specifications | ||
| Model | Genix 6090 | |
| Type | INKJET PRINTER | |
| Printhead | EPSON i3200 Inkjet Printhead | |
| Print Technology | Piezoelectric inkjet | |
| Printing Resolution | Up to 720 x1800 DPI | |
| Media | Maximum Print Size | 60 cm (width) x 90 cm (Length) |
| Table Size | UV Curable inks | |
| Max.Thickness | 0 - 200mm | |
| Ink Type | UV Curable Inks | |
| Ink Configuration | 4 Color / 6 Color ( C, M, Y, K, W, V ) | |
| Ink tank | 1000 ml | |
| Ink Supply System | Negative Pressure System (NPS) with Automatic Ink Supply | |
| Curing System | Dual UV lamps, Water Cooling System | |
| Connectivity | High-Speed LAN Cable RJ-45 | |
| File Format | Tiff, JPEG, EPS, PDF | |
| Resolution | 720 x 1800 DPI, 720 x 1200 DPI, 360 x 1800 DPI | |
| Pass | 6 Pass, 8Pass, 12Pass | |
| Speed | Up to 50 sq.ft | |
| Power Requirement | Input Voltage : 220 - 240V, Single Phase, 50Hz/60Hz | |
| Printer Dimensions (X*Y*Z) | 1750 x 1630 x1300 mm | |
| Net Weight | 400 kg | |
