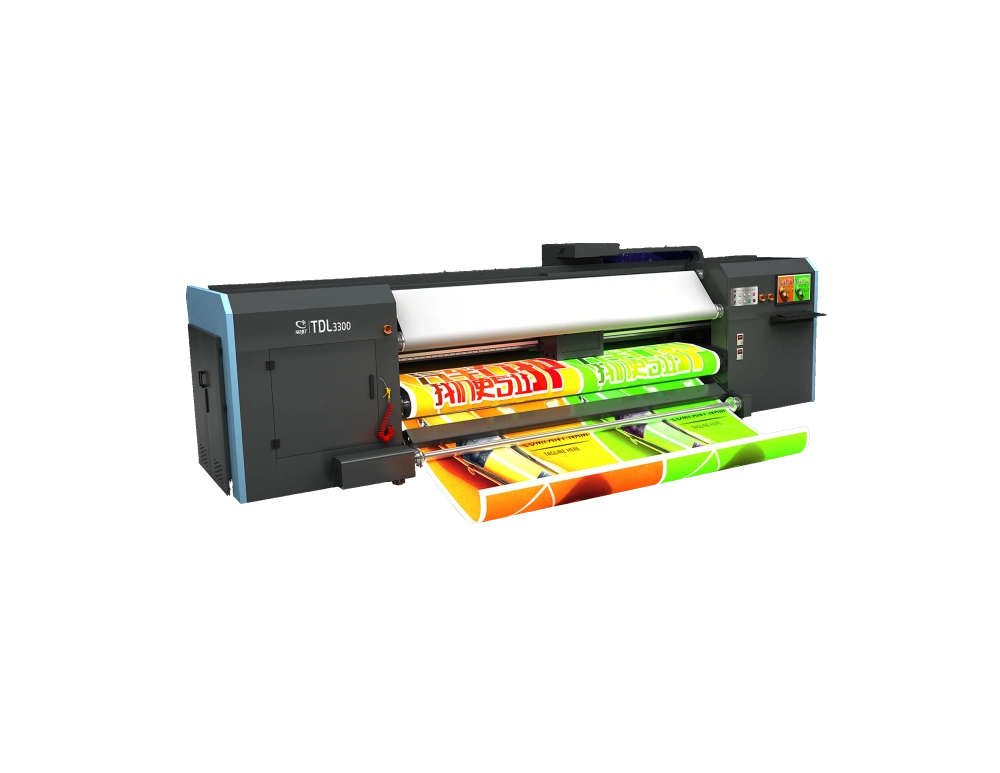

SKYJET FL-TDL3300
The SkyJet FL-TDL3300 direct print machine that can produce single & double sided prints. It can function as two (2) single side direct print machines simultaneously and one (1) double sided direct print machine. Streamline your print operations with this powerhouse work horse.
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
| Model | TDL3300 KJ4B-4 (2-channel) heads/ 2 Front+2 Back | |||
| P.H. | Without mask | With 50% mask speed difference | ||
| Print resolution
(without mask) |
2 pass (605×600)
236m2/h |
2 pass (605×600)
100m2/h |
2 pass (605×600)
166m2/h |
2 pass (605×600)
73m2/h |
| 3 pass (605×900)
172m2/h |
3 pass (605×900)
73m2/h |
3 pass (605×900)
136m2/h |
3 pass (605×900)
58m2/h |
|
| 4 pass (605×1200)
136m2/h |
4 pass (605×1200)
58m2/h |
4 pass (605×1200)
116m2/h |
4 pass (605×1200)
43m2/h |
|
| Ink type | Dye sublimation and disperse | |||
| color | C, M, Y, K | |||
| Ink tank | 5L | |||
| RIP | CALDERA Rip | |||
| P.H.maintain | Automatic cleaning, wipe, moisturize, sealing device | |||
| Fabric thickness | 10mm | |||
| Print width | 3200mm | |||
| Print length | 50m | |||
| Work Environment | Humidity 20-28oC, temperature 40-70% | |||
| Power | 380V, 50/60 Hz, Main 15.5 KW (Drying 8KW) | |||
| Dimension | 6122 x 2037 x 1920 (mm) | |||
| weight | 3800KG | |||
