Pixeljet® impulse

UV Flatbed Printer

Impressive print quality with media versatility

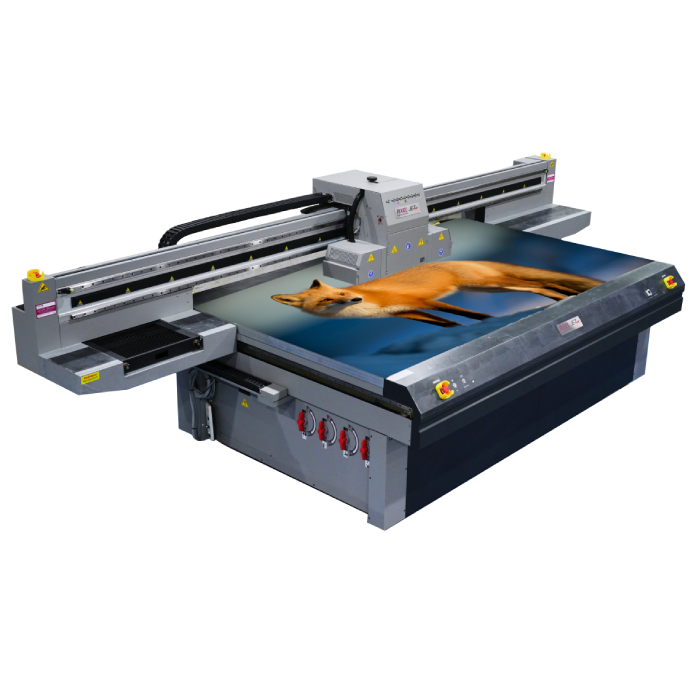

The Pixeljet® UV impulse UV Flatbed Printer empowers users with the direct-printing capabilities to unlimited applications and also provide the advantage of product customization to a range of rigid applications and substrates which includes wood, glass, ceramic tiles, PVC, UPVC, home appliances, melamine, acrylic, Doors, windows and many more.

    Your Name* :

    Your Email* :

    Your Phone no* :

    Product Name :

    Your Address :

    Your Message :

    Description

    UV Flatbed Printing Machine & PVC Door Printing Machine Features:

    Automatic Anti-Crash Sensor

    The safety anti–crash sensor design can detect the state of the media beforehand and protect the print heads from a crush hazard. While the anti-crash sensor detects that the edge of media is tilted, the turbo flatbed printer will initiate an emergency stop to prevent printhead from damage.

    UV Varnish Solution

    Optional varnish not only enhances the visual quality but also creates the tactile attribute of graphics. Users are able to apply varnish directly on graphics via print heads as either an allover coating or as a spot-highlighting, giving your printings more vivid and brighter finishing.

    Mechanic Superiority

    Dual lead screw & dual guider broadside scanning mechanical structure, industry-leading machinery precision, table loading capacity of 45 kg/sqm automatic take off enables the printing on different sizes of media, auto detection of media, detection of origin, pneumatic medium jack-up can load the large-format media easily.

    White Ink Recirculation

    White ink recirculation results in an effective elimination of ink starvation and protects printheads from clogging hazard.

    Pressure & Ink Supply Control

    Closed-loop automatic control, reliable printing quality, Pneumatic control components improved from Japan delivers guaranteed quality.

    Color Option

    The machine can be configured as KCMY / KCMY LcLm / KCMY*2 and KCMY + W; moreover, the machine could spray with white color as bed or cover or spot-color printing.

    Benefits:

    • Greener and more cleaner printing with UV technology
    • Low maintenance cost
    • Faster production times
    • Lower cost
    • Easy customization
    • Wide Range of Media

    Home appliances printing machine: Printing on home appliances such as refrigerators, microwaves, air-conditioners, water purifiers, chimneys etc. requires printing which is highly durable. Home appliances printing machines from Pixeljet® such as Velocity, impulse and Ultron series are the perfect solution for printing in home appliances. These machines are equipped with RICOH print heads and uses UV LED technology which ensures that prints are vibrant in color and durable. Product customization also becomes easy with the Pixeljet® home appliances printing machines as any design can be printed with the help of these machines. UV Flatbed printing machine

    PVC door printing machine: PVC door printing machine from Pixeljet® are perfect for scaling up your business. Pixeljet® impulse and Pixeljet® velocity UV flatbed printers are equipped with UV technology and RICOH industrial grade print head are capable for producing high quality jobs and high speed. PVC door printing machines from Pixeljet® empowers users with the direct-printing capabilities to unlimited applications and also provide the advantage of product customization to a range of rigid applications. See the List of various PVC door printing machine.

    UV Flatbed printing machine: The UV flatbed printing machines, Pixeljet® Velocity and Pixeljet® impulse are a high volume versatile UV flatbed printing machine which can print on unlimited application and it is ideal for product customization to a range of rigid applications and substrates which includes wood, glass, ceramic tiles, PVC, UPVC, home appliances, melamine, acrylic, Doors, windows and many more. These machines ensures Greener and cleaner printing with UV technology involves lower maintenance cost and higher productivity. See the List of various UV flatbed printing machine. PVC Door Printing Machine

    Asbestos sheets printing machine: Give your designs the power of UV printing with Pixeljet® Asbestos sheets printing machines. With Pixeljet® Ultron services, Pixeljet® Velocity and Pixeljet® impulse UV hybrid/flatbed printers, print onto large Asbestos sheets with ease. PVC Door Printing Machine

    Wall panel printing machine: Pixeljet® wall panel printing machine is perfect to print on wall/celling panels. Pixeljet® UV impulse UV Flatbed Printer empowers users with the direct-printing capabilities. The UV LED technology ensures that prints are vibrant in color and durable, it can easily apply beautiful colors and texture to the surface and also provide the advantage of product customization.
    UV Flatbed printing machine

    Resources

    Resources

    Pixeljet Impulse Brochure

    Specifications
    Model Pixeljet® Impluse
    Color 4 color/double 4 color/ 6 color/ white or varnish
    Printhead Printhead Stainless steel industrial grey scale high speed print head (7-35pl) Ricoh Gen5/Gen6, 1280 Nozzles, 30Khz, Dual port
    Resolution Upto 2400 dpi
    Speed Upto 400sq.ft/hr (Depends on number of printheads)
    Media Wood Panel, Aluminum Panel, Door Plank, Paperboard, PVC Expansion Sheet, Ceiling Panel, Glass, Ceramics, Acrylic, PVC etc.
    Size of Material Maximum printing area (Rigid material): 2680 mm width x 1220 mm depth Maximum material size (Rigid material): 2700 mm width x 1330 mm depth
    Thickness of Material Upto 100mm
    Image Format TIFF, JPEG, PS, EPS, PDF
    Ink Type UV Curable Inks
    Ink Capacity 2.5 liter drums, automatic ink control
    Power Supply 15KW AC, 50Hz, 220V (+- 10%) >20A
    Printing Software Photoprint/Onyx
    Accessories Air Compressor & Vaccum Blower
    Operation Environment Temperature: 18 – 260C | Humidity: 40 – 70%
    Dimensions (LxWxH) 4820 x 2000 x 1500 mm
    Package Dimensions (LxWxH) Dimensions Net Weight 4830 mm x 2470 mm x 1580 mm .
    Weight 1300 kg
    Safety Certification CE Certification
