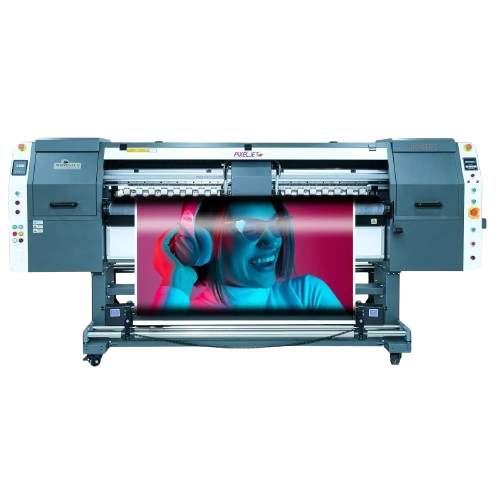

Pixeljet® miniRTR
6 feet UV LED Roll-to-Roll printer
Affordable. Effective. Powerful
Pixeljet® miniRTR is an affordable solution to print high-quality, broad variety of signage and decor applications. It allows you to expand your reach to new markets and explore new revenue opportunities.
Description
Features:
- Thin-Film Piezoelectric Technology(MEMS)
- Industrial Luxury design, industrial-grade circuit design
- UV roll to roll printing, color+white+color simultaneous printing program, leading the future of the printing market
- Strong nozzle compatibility
- RICOH Industrial grade printhead
- Self-developed lifting maintenance station, easy to draw ink and easy to maintain
- Perfect scientific three-stage ink filter design, protect the print heads more effectively
- Taiwan Hiwin 2.0 silent linear guide
- Servo motor, feeding media more accurate
- Stable, longer life, ultra-low noise, high precision and high speed
- Perfect and scientific continuous ink supply system design
Benefits:
- Greener and more cleaner printing with UV technology
- Low maintenance cost
- Faster production times
- Lower cost
- Easy customization
- Wide range of applications
Resources
Resources
Application Gallery
Application Gallery
Specifications
| Technical Specifications | ||
| Model | Pixeljet® miniRTR | |
| Technology | Piezo Drop on Demand | |
| Print Head | RICOH industrial grade print heads | |
| Number of Print Heads | Up to 3 heads | |
| Maximum Print Size | 1800mm | |
| Maximum Print Speed | Upto 150sqft/hour (Depends on number of print head and color configuration) | |
| Media Type | Transparent materials, self-adhesive vinyl, outdoor materials, films, leather, wallpaper and many more | |
| Drying System | UV LED curing system adjustable for different materials | |
| File Format | PDF, TIFF, JPEG, EPS,AI | |
| No. of Colors | (CMYK)x3, (CMYK)+WV | |
| Ink Type | UV curable inks | |
| Max Material Size | 1900mm | |
| Resolution | Upto 2400dpi | |
| Print Interface | High-Speed USB | |
| RIP Software | Photo Print (Pixeljet edition) | |
| Power Specification | 230V,10A, 50Hz single phase power | |
| Operational Environment | Temp 18-25”c | Humidity 20-80%Rh | |
| Weight | 650kg | |
| Dimension & Weight | 3100mm X 1400mm X 720mm (LXBXH) | |
